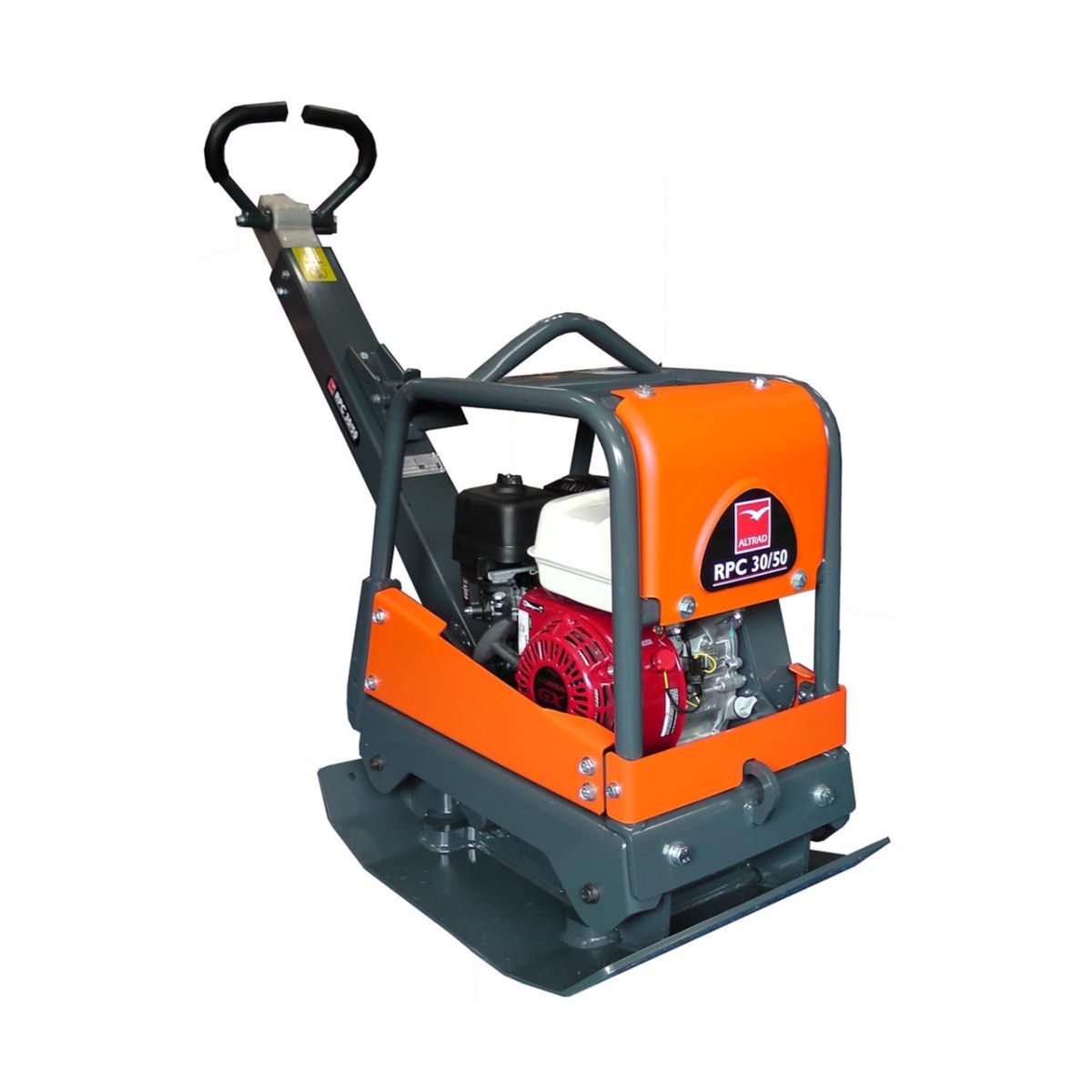

Belle 161.9.067 RPC 30/50 Honda Petrol Reversible Plate Compactor Heavy-Duty for Construction

Belle 161.9.067 RPC 30/50 Honda Petrol Reversible Plate Compactor Heavy-Duty for Construction

Heavy duty range of reversible plate compactors with hydraulic shift gearboxes for changing movement direction. RPC plates are designed for high compaction, durability and ease of maintenance.

Features:

Two sizes of base plate and weights to suit all kind of applications combining low weight with high compaction force.
Model 30/40, base plate width 400 mm.
Model 30/50, base plate width 500 mm.
Compact machines with highest performance and compaction results.
Petrol or diesel engine options.
High frequency vibrating element 90 HZ.
Compact design combined with excellent ergonomic and low hand arm vibrations which minimising operator fatigue.
Specially designed operator handle for easy operating with minimum of strain.
User and service friendly where all components are easily accessible.
Large centrally placed lifting hook.
Foldable handle which provide easy moving, minimum size for transport and storage.

Comes With:

1x Belle 161.9.067 RPC 30/50 GX160 Honda Petrol Reversible Plate Compactor.

Product Specification:

Part no: 161.9.067
Barcode: 5031403403650
Brand: Belle
Engine/Motor Power : 4.9 - 3.6 (Hp) - (kW)
Dimensions W x L x H (mm): 500 x 1010 x 1161
Static Pressure : 1034 (Kg/m2)
Max Gradient : 20 (°)
Centrifugal Force : 30 (kN)
Frequency : 95 (Hz)
Travel Speed : 24 - 26 (m/min)
Vibration Level : 11.74 (m/sec2)
Weight (Kg): 161

**images for illustrative purposes only – please refer to description and specification for full details of product**
